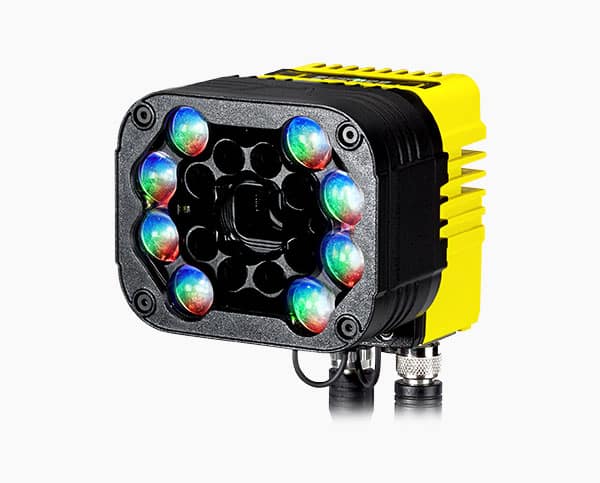

IN-SIGHT 3800 VISION SYSTEM

Setting the pace of machine vision

Categories ,

The comprehensive vision system, In-Sight 3800, caters to all your vision requirements - offering speed, resolution, and adaptability like no other.

This cutting-edge vision system delivers a robust, user-friendly solution for automated inspection tasks. Equipped with a suite of precise rule-based tools and cutting-edge edge learning technology, the In-Sight 3800 efficiently handles a broad spectrum of industrial tasks. These range from identifying defects and confirming assembly accuracy to reading characters and beyond, empowering you to:

  • Enhance operational efficiency – Accelerate inspection rates with swift processing capabilities and effortless configuration.
  • Elevate result precision – Capture images of superior contrast and resolution to identify even the slightest anomalies.
  • Effortlessly expand your system – Tackle a variety of tasks, from simple to intricate, utilizing a unified software environment.

Achieve unmatched speed and maximize efficiency

Step up the pace. The In-Sight 3800, with double the processing capacity of its predecessors, sets the standard for performance across manufacturing tasks. Its rapid tool speeds align with your production needs, boosting output and enhancing the efficiency of your automated processes.

Simplify automation with cutting-edge edge learning technology

The In-Sight 3800 incorporates state-of-the-art edge learning capabilities, democratizing AI technology for all skill levels. These tools enable both novices and seasoned professionals to implement dependable automation effortlessly through straightforward, example-based instruction. With the help of pre-trained algorithms, edge learning adeptly manages various tasks, from simple presence/absence detection to complex multi-class sorting and sophisticated optical character recognition.

Utilize established rule-based tools for intricate tasks

Beyond edge learning, the In-Sight 3800 is armed with an extensive selection of rule-based tools. These tools, which can be applied independently or in combination, offer the versatility to employ both traditional, rule-based vision techniques and AI technology. This comprehensive toolkit allows for measuring distances and shapes, counting pixels and identifying patterns, decoding information, guiding robotics, executing calculations, and more.

Achieve superior standards with exceptional image quality

The system captures high-definition images under any condition. Its multi-colored lighting system (RGBW and IR) ensures optimal image clarity, enhancing contrast and brightness regardless of the surroundings. A simple click within the In-Sight Vision Suite alters lighting conditions, producing sharper images for more precise inspections.

Expand HDR capabilities

The advanced HDR+ technology elevates HDR’s potential by automatically boosting contrast, delivering a consistently detailed and balanced image in a single capture. This enhancement reveals previously indiscernible details and reduces exposure times, facilitating quicker production speeds.

Support diverse applications with versatile development tools

Powered by the In-Sight Vision Suite software, shared across all In-Sight devices, the In-Sight 3800 offers two development interfaces – EasyBuilder® and spreadsheet. EasyBuilder’s intuitive design is perfect for straightforward tasks, whereas the spreadsheet environment caters to complex or highly tailored projects.

Flexible hardware to grow with your needs

The In-Sight 3800 vision system’s modular hardware design easily adapts to varying application requirements and customizations. With interchangeable components, the system can be tailored to meet evolving demands, such as new part specifications, heightened quality expectations, and accelerated delivery schedules.

Image SensorIS3801MIS3801CIS3803MIS3803CIS3805MIS3805C
In-Sight 3800 Series Specifications
Bit Depth8-bit monochrome24-bit color8-bit monochrome24-bit color8-bit monochrome24-bit color
Frames per Second (Maximum, Full Resolution)125 fps52 fps47 fps30 fps32 fps21 fps
Sensor Type1/2.3” CMOS, global shutter1/1.8” CMOS, global shutter2/3” CMOS, global shutter
Sensor Properties6.3 mm diagonal
3.45 x 3.45 μm square pixels
8.9 mm diagonal
3.45 x 3.45 μm square pixels
11.1 mm diagonal
3.45 x 3.45 μm square pixels
Maximum Image Resolution (pixels)1440 x 10802048 x 15362448 x 2048
Electronic Shutter Speed19.5 μs to 200,000 μs25.1 μs to 200,000 μs19.1 μs to 200,000 μs
Image SensorIS3808MIS3808CIS3812MIS3812CIS3816MIS3816C
Bit Depth8-bit monochrome24-bit color8-bit monochrome24-bit color8-bit monochrome24-bit color
Frames per Second (Maximum, Full Resolution)24122211188
Sensor Type2/3″ CMOS, global shutter1/1.1” CMOS, global shutter1.1” CMOS, global shutter
Sensor Properties11.1 mm diagonal,
2.74 x 2.74 μm square pixels
14.0 mm diagonal,
2.74 x 2.74 μm square pixels
16.8 mm diagonal,
2.74 x 2.74 μm square pixels
Maximum Image Resolution (pixels)2840 x 28404096 x 30005320 x 3032
Electronic Shutter Speed22 μs to 200,000 μs22 μs to 200,000 μs29.1 μs to 200,000 μs
Vision System
Memory4 GB
Lens TypeC-Mount, Cognex High Speed Liquid Lens Autofocus, or Cognex manual focus lens (used with Multi-Torch Illumination accessory).
Trigger1 opto-isolated, acquisition trigger input.
Discrete Inputs1 opto-isolated, acquisition trigger input.
Up to 3 general-purpose inputs when connected to the Breakout cable.
Discrete OutputsUp to 4 high-speed outputs when connected to the Breakout cable.
Status LEDsPass/Fail LED and Indicator Ring, Network LED and Error LED.
High Speed Liquid Lens LifespanNumber of Focus Cycles: 1800 M cycles
Job/Program Memory7.2 GB non-volatile flash memory; unlimited storage via remote network device.
Image Processing Memory512 MB SDRAM
Network Communication2 Ethernet ports, 10/100/1000 BaseT with auto MDIX. IEEE 802.3 TCP/IP Protocol.
1 USB-C port (supports direct connection to In-Sight Vision Suite on a PC, no factory floor protocols supported)
Supports DHCP, static, and link-local IP address configuration. One port supports TSN networks.
Communication ProtocolsTCP/IP, PROFINET, EtherNet/IP, SLMP, ModbusTCP, (S)FTP, RS-232C
Power Consumption24 V DC ± 10%, 2.0 A maximum.
Power Output24 V DC at 1.0 A maximum to external light.
MaterialDie-cast Zinc housing.
FinishPainted.
MountingFour M3 threaded mounting holes. See Accessories for supported mounts.
Pattern: 38.5 × 58.5 mm (1.52 × 2.60 in)
WeightIn-Sight 3800 with no accessories attached: 570 g (20.10 oz).
With 45 mm plastic C-Mount cover (COV-380-CMNT-45): 625 g (22.0 oz.) – no lens included.
With 60 mm plastic C-Mount cover (COV-380-CMNT-60): 635 g (22.4 oz.) – no lens included.
With 75 mm plastic C-Mount cover (COV-380-CMNT-75): 650 g (22.9 oz.) – no lens included.
With Multi-Torch Illumination, High Speed Liquid Lens (16 mm), and standard front cover: 840 g (29.6 oz.).
With Multi-Torch Illumination, High Speed Liquid Lens (16 mm), and dome attachment: 970 g (34.2 oz.).
Ambient / Environment Temperature0° C to 40° C (32° F to 104° F)
Storage Temperature-20° C to 80° C (-4° F to 176° F)
Humidity<95% non-condensing
ProtectionIP67 with all cables properly attached (or the provided connector plug installed), the IP67-rated cover, or Multi Torch attachment properly installed.
Packaging shock spec
(not device itself)
IEC 60068-2-27: 18 shocks (3 shocks in each polarity in each (X, Y, Z) axis) 80 Gs (800 m/s2 at 11 ms, half-sinusoidal) with cables or cable plugs and a 150 gram or lighter lens attached.
VibrationIEC 60068-2-6: vibration test in each of the three main axis for 2 hours at 10 Gs (10 to 500 Hz at 100 m/s2 / 15 mm) with cables or cable plugs and a 150 gram or lighter lens attached.
Regulations/ConformityCE, FCC, KCC, TÜV SÜD NRTL, EU RoHS, China RoHS

NOTE: The above field of view diagrams are based on the minimum and maximum focus distances of the High Speed Liquid Lens. If using a High Speed Liquid Lens with the Multi Torch light accessory, the system will perform best at distances between 150mm and 500mm in terms of light intensity/uniformity.

Common software platform offers flexible development options

In-Sight Vision Suite software is common across all In-Sight products and includes two programming environments – EasyBuilder® and spreadsheet – which allow you to seamlessly scale your solution as your application needs change.

Download software from MyCognex

EasyBuilder simplifies setup and delivers rapid turnaround

With its point-and-click programming, the EasyBuilder® interface within In-Sight Vision Suite is ideal for setting up simple or common jobs. The intuitive process guides developers step-by-step through setup—from image capture to the final result and beyond—allowing both new and experienced users to configure reliable vision applications.

Spreadsheet facilitates deployment of advanced applications

The spreadsheet interface is ideal for building advanced and highly customized applications. Robust in design, this development environment provides users with the ability to make critical adjustments to job parameters, without the need for programming. It enables you to quickly set up and run jobs and continue to adapt applications as your requirements evolve.

Extensive toolset addresses tasks of varying complexity

In-Sight 3800 is embedded with a full suite of traditional and AI-based vision tools that solve a variety of error-proofing applications. This comprehensive library accommodates all skill levels by providing access to industry-proven, rule-based algorithms, such as Measure Distance, Measure Angle, Count Patterns and Math and Logic Tools, as well as innovative, easy-to-use ViDi EL tools. The tools can be used individually or combined, giving you the ability to leverage the best of both traditional, rule-based vision and edge learning technology.

Easy-to-use edge learning brings the power of AI to everyone

Edge learning is a subset of AI that uses a pre-trained set of algorithms to solve vision tasks in minutes. Training is simple, requiring as few as 5 to 10 example images with no advanced programming or AI expertise required. Powered by edge learning, ViDi EL tools help you automate and scale inspection applications. These innovative tools deliver fast processing speeds to increase throughput, keep pace with your operations, and deliver fast, reliable results in real-time.

ViDi EL Segment

The ViDi EL Segment tool allows users to segment images to extract particular regions for targeted inspection. The region can include any type of feature on a part that you want to identify, from unwanted defects to critical components. Users train the tool by marking the region(s) of interest on an image and assigning it a class. After training just a few sample images, the tool learns to reliably segment the right features, even with varied parts and complex backgrounds.

ViDi EL Classify

The ViDi EL Classify tool automatically identifies and sorts objects into classes based on user-defined features, characteristics, or defect types. Capable of discerning visually similar, but different objects, this tool enables you to classify defects into different categories and correctly identify parts with variation. Along with the ability to assign multiple classifications, you can set up multiple regions of interest to inspect different sections of your part.

ViDi EL Read

The ViDi EL Read tool deciphers a variety of text and font types using AI-based optical character recognition (OCR). It reads multi-line text, as well as characters against challenging backgrounds, including reflective, low-contrast, and non-flat surfaces. ViDi EL Read can also be quickly redeployed to handle new text and accommodate process variations. The tool offers two training modes to address character reading applications of varying complexity:

  • Pre-trained mode – allows you to read characters right out of the box for simple applications
  • User-trained mode – allows you to train characters to solve more complex applications

In-Sight 3800 helps you lead with speed across all industries by automating a wide range of inspection applications, at the fastest speeds. With modular hardware and an extensive tool set, In-Sight 3800 offers an industry-agnostic solution that allows you to maximize throughput and improve the accuracy of your results, regardless of the task at hand.

Automotive and EV

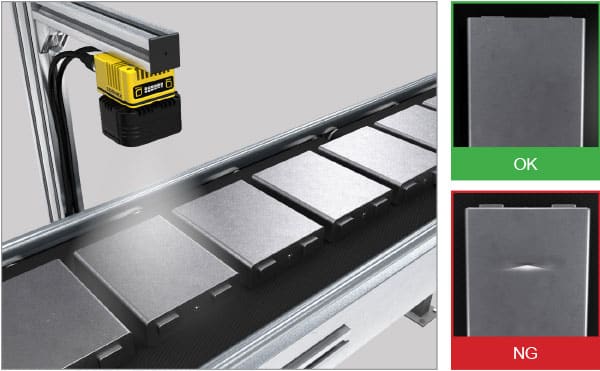

EV Battery Pouch Inspection

Identify surface-level defects, such as scratches, dents and tears, and generate pass/fail results.

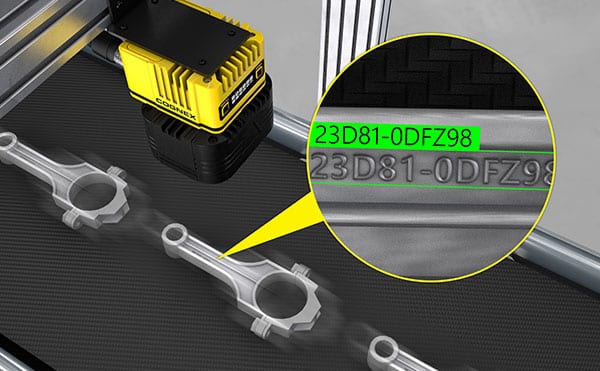

Connecting Rod Identification

Decipher hard-to-read text etched on metallic surfaces to ensure proper routing and traceability.

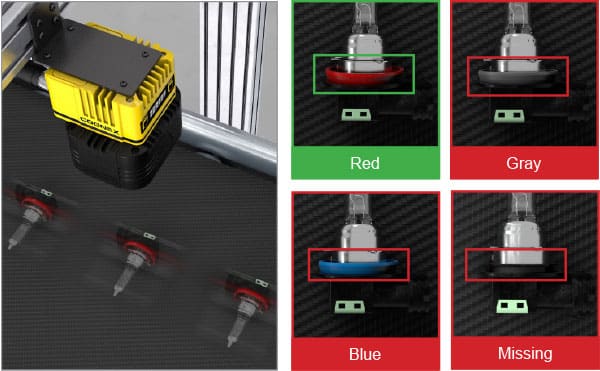

Gasket Quality Check

Determine whether parts are good or bad based on presence/absence of defects.

O-Ring Detection and Classification

Verify presence/absence of o-rings and classify them by color during assembly.

Spark Plug Gauging

Measure the distance between components to verify full assembly and prevent rework further downstream.

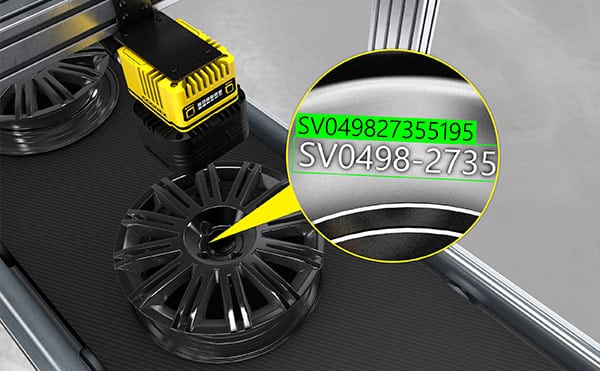

Tire Identification

Read DOT codes on low-contrast and reflective surfaces to identify parts.

Oil Pump Inspection

Segment sections in oil pumps and extract specific features to perform targeted inspections.

Air Filter Defect Detection

Identify subtle and variable defects on automotive air filters to ensure quality standards and prevent recalls.

Car Door Inspection

Locate and segment different regions of car doors to check for defects during assembly.

EV Battery Pack Assembly Inspection

Detect edges and measure the distance between them to ensure correct sizing of EV battery pack assemblies.

Consumer Packaged Goods

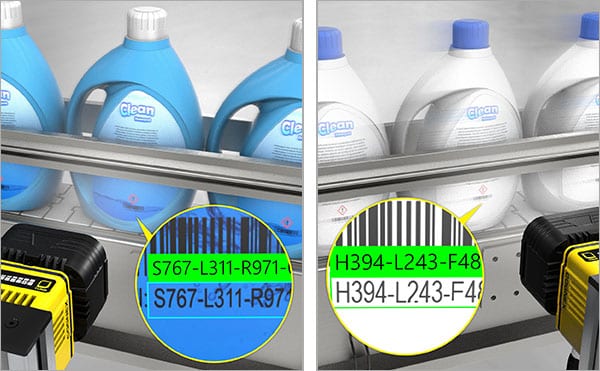

Detergent Bottle Label Reading

Easily handle product changeovers by deciphering lot codes against backgrounds of different colors.

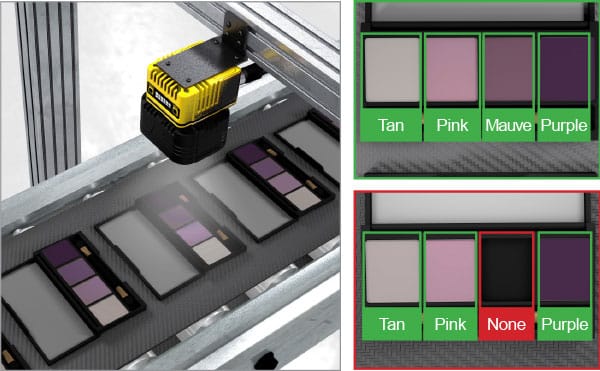

Makeup Palette Inspection

Detect presence/absence of contents and classify them by color to ensure proper assembly.

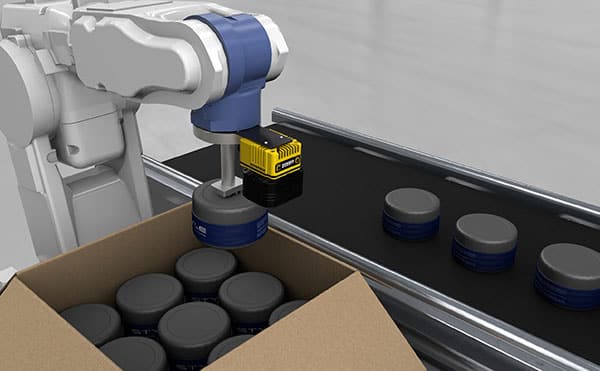

Robotic Guidance for Pick and Place

Guide robotic arms to pick and place assembled products into bins for final routing.

Soap Box Scent Classification

Identify different classes (scents) to ensure the correct one is attached to the packaging.

Electronics

Cable Pin Count

Count components to verify completeness and ensure proper functionality at time of use.

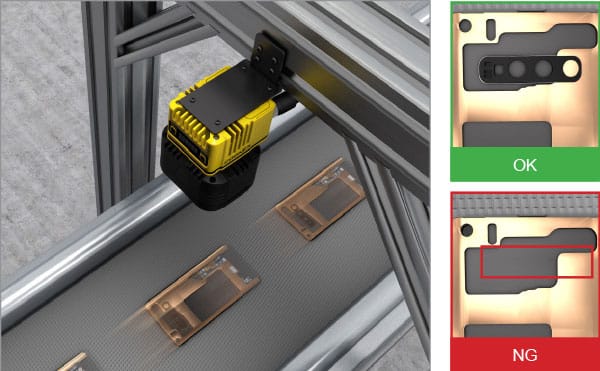

Smartphone Assembly Inspection

Detect presence/absence of components, based on varying brightness levels, during assembly.

Printed Circuit Board Classification

Extract different regions on a PCB and classify them to verify correct assembly.

Food and Beverage

Barcode Reading on Bottles

Read barcodes, even on curved surfaces, to ensure proper traceability.

Lot Code and Expiration Date Reading

Read lot codes and expiration dates, on uneven surfaces, to ensure product freshness and prevent recalls.

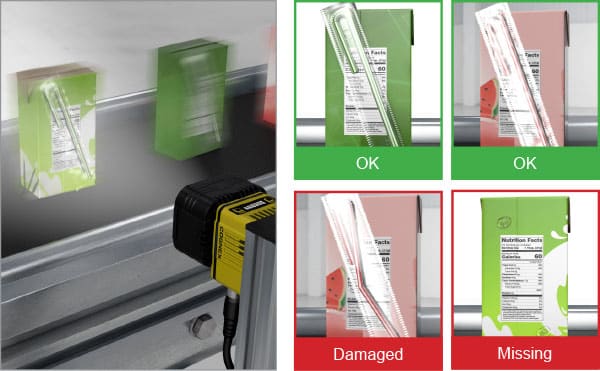

Juice Box Inspection

Detect and classify multiple defects, such as damaged or missing parts, on packaging.

Food Uniformity Inspection

Ensure shape uniformity of products moving down the line.

Multi-Pack Code Reading

Read lot codes on multiple products at the same time, even with variable positioning.

Aluminum Can Inspection

Detect and classify multiple types of defects on aluminum cans to ensure product integrity.

Logistics

Package Traceability

Read multiple lines of text, simultaneously, to ensure proper routing.

Pharmaceutical and Medical Device

Medical Device Code Reading and Text Recognition

Read 2D codes and lot numbers, at the same time, to properly route components for final assembly.

Vaccine Label Inspection

Perform on-line verification at high speeds to ensure product efficacy and meet regulatory compliance. to ensure product integrity.

Test Tube Fill Level Detection

Detect and separate the liquid levels in test tube samples to verify correct segmentation.

Medical Device Code Reading

Read 2D codes and lot numbers across multiple products at the same time to properly track components.
